| RADAR PERFORMANCE |
| Operating Frequency | X-band |
| Field of View | 90° Azimuth x 90° Elevation |
| Detection Accuracy | Azimuth ≤ 0.5° |
| Elevation ≤ 0.5° |
| Range ≤ 10m |
| Data Rate | Search Rate: ≤ 3s |
| Tracking Rate: 2Hz @ 6 targets, 12Hz @ 1 target |
| Max Tracks | > 1,000 Objects of Interest |

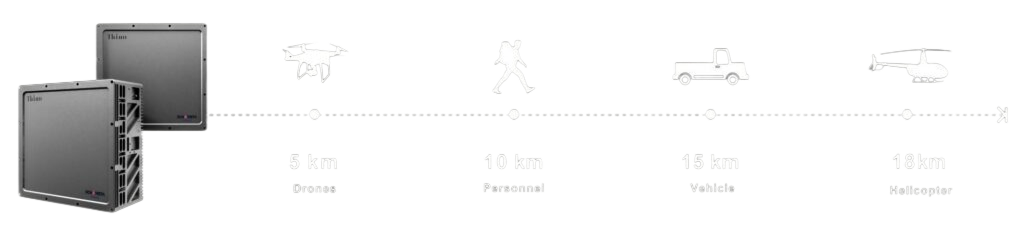

| Detection Range |  |
| SWaP & ENVIRONMENTAL |
| Dimensions | 38cm × 36cm × 16cm |
| Weight | ≈19kg |
| Power Consumption and Supply | 38-60V DC, Power Consumption ≤ 0.45 kW |
| Temperature | Operating :-32℃ to +55℃ |
| Storage :-40℃ to +65℃ |
| Protection Level | IP67 |
| Environmental | MIL-STD-810 H |
| EMC | MIL-STD-461F（RE102、RE103、CE102、CS101、CS114、CS115 and RS103）、IEC 62311: 2019 |
